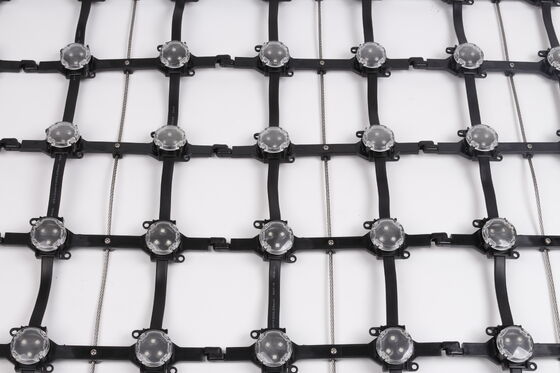

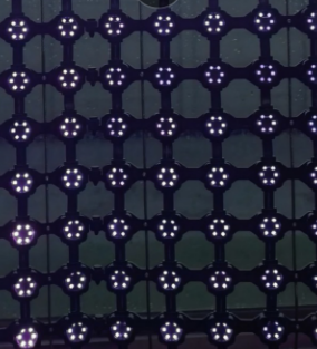

LED Mesh Screen Video Wall Display Flexible Outdoor Transparent Curtain Billboard for Building Facade Stage Advertising
| Place of Origin | China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS |
| Model Number | XH-H2503P83 |
| Minimum Order Quantity | 1 square meter |
| Price | Negotiation |
| Packaging Details | Carton 45*45*55cm or customized flight case |
| Delivery Time | 5-15 working days |
| Payment Terms | T/T,Western Union |
| Supply Ability | 500+ sqm per month |
Product Details
| Pixel Pitch | 83mm | LED Source | SMD3535 |
|---|---|---|---|
| Brightness | ≥2000Cd/m² | Refresh Rate | ≥3840Hz |
| Protection Level | IP67 | Cabinet Material | PC |
| Cabinet Weight | 4kg/sqm | Permeation Ratio | 30% |
| Viewing Angle | 160° | Input Voltage | AC110-240V |
| Working Voltage | DC12V | Max Power | 400W/m² |
| Average Power | 200W/m² | Lifespan | ≥100,000 Hours |
| Control System | DMX512 | Size | 1000mm × 1000mm (customizable) |
| Application | Video Wall, Building Facade, Stage Background, Billboard Advertising | ||
| Highlight | LED mesh screen video wall,flexible outdoor LED wall display,waterproof LED curtain advertising billboard |
||
Product Description
LED Mesh Screen Video Wall Display Outdoor Transparent Curtain Billboard for Building Facade Stage Advertising
Product Overview
This flexible LED mesh screen is engineered for demanding video wall display projects, building facade media installations, and large-scale outdoor advertising. Featuring a transparent mesh design with 30% permeation ratio, it delivers vivid visuals while minimizing wind load and structural burden. Ideal for B2B buyers seeking durable, high-brightness LED curtain solutions for commercial and entertainment venues worldwide.
Key Features
- Video Wall Ready: Seamless拼接 for large LED video wall display projects, supports DMX512 control system with ≥3840Hz refresh rate for flicker-free performance
- High Brightness: 2000Cd/m² output ensures excellent visibility even under direct sunlight, perfect for outdoor wall display advertising
- IP67 Waterproof: Fully sealed LED modules withstand rain, dust, and extreme weather, suitable for permanent outdoor curtain billboard installations
- Flexible & Lightweight: Soft mesh design at only 8Kg/m² easily curves around building contours; PC cabinet material with 4kg module weight for easy installation
- Transparent Design: 30% permeation ratio allows natural light and airflow, reducing wind load on building facades while maintaining architectural aesthetics
- Energy Efficient: Average consumption only 200W/m² with DC12V low-voltage operation for safe, cost-effective 24/7 running
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand Name | Miracle Bean |
| Model Number | XH-H2503P83-Pro |
| Pixel Pitch | 83mm |
| LED Source | SMD3535 |
| Brightness | ≥2000Cd/m² |
| Refresh Rate | ≥3840Hz |
| Protection Level | IP67 |
| Viewing Angle | 160° |
| Permeation Ratio | 30% |
| Module Size | 1000mm × 1000mm |
| Weight per sqm | 8Kg |
| Cabinet Material | PC |
| Input Voltage | AC110-240V |
| Max Power | 400W/m² |
| Average Power | 200W/m² |
| Lifespan | ≥100,000 hours |
| Control System | DMX512 |
| Warranty | 3 Years |
Applications
- Video Wall Display: Create immersive LED video walls for command centers, broadcast studios, sports arenas, and conference halls
- Building Facade Advertising: Transform building exteriors into dynamic digital billboards for high-impact outdoor advertising campaigns
- Stage Background: Deliver stunning visual backdrops for concerts, fashion shows, award ceremonies, and live events
- Media Wall: Ideal for shopping malls, airports, exhibition centers, and public information displays
- Commercial Billboard: Weather-resistant outdoor curtain billboard for 24/7 roadside and urban advertising
B2B Advantages
- 20+ years specialized experience in LED transparent screens, grille screens, and mesh screens
- Comprehensive OEM & ODM services with free design support for custom video wall projects
- Small MOQ of 1 sqm to help buyers test market response before bulk ordering
- Factory-direct pricing with no middleman markup
- Fast delivery: samples immediately after payment; bulk orders within 7-15 working days
- 3-year warranty with lifetime technical support and defective product replacement
- Professional English-speaking team for seamless B2B communication
Frequently Asked Questions
Q: Can this LED mesh screen be used for video wall display?
Yes, our P83-Pro is specifically optimized for video wall applications. With ≥3840Hz refresh rate and DMX512 control, it delivers smooth, flicker-free video playback perfect for broadcast and live event environments.
Q: What sizes are available for the wall display?
Each module is 1000mm * 1000mm and can be daisy-chained to create video walls of any size. Custom dimensions are available upon request.
Q: Is this suitable for outdoor building facade use?
Absolutely. With IP67 waterproof rating, 2000nit brightness, and 30% permeation for wind resistance, it is purpose-built for permanent outdoor building facade installations.
Q: What is the minimum order quantity?
MOQ is just 1 square meter, ideal for sample testing and project evaluation.
Q: Do you provide installation support?
Yes, we offer comprehensive support including installation guidance, controller setup, and software configuration to ensure your LED curtain billboard operates flawlessly.
