P5 Tool Free Peel Stick Self Adhesive Transparent LED Film Display Screen for Glass Window Quick DIY Setup
| Place of Origin | Shenzhen, Guangdong, China |
|---|---|
| Brand Name | WNRLN |
| Certification | CE, RoHS, FCC |
| Model Number | P5-TF-DIY |
| Minimum Order Quantity | 10 Square Meter |
| Price | negotiate |
| Packaging Details | Export-grade wooden crate with EPE foam padding, each roll individually vacuum-sealed with desiccant pack |
| Delivery Time | 3-7 working days for stock, 15-20 days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 5000 Square Meters per Month |
Product Details
| Pixel Pitch | P5 (5mm) | LED Type | SMD 2121 |
|---|---|---|---|
| Transparency | Up To 85% | Brightness | ≥4000 Cd/m² |
| Refresh Rate | ≥1920Hz | Input Voltage | DC 5V |
| Max Power Consumption | 400W/m² | Avg Power Consumption | 160W/m² |
| Module Thickness | ≤3mm | Module Weight | ≤3.5kg/m² |
| Viewing Angle | 160°/160° (H/V) | IP Rating | IP31 (Indoor) |
| Control System | Novastar / Linsn Compatible | Lifespan | ≥100,000 Hours |
| Warranty | 3 Years | Installation Method | Peel And Stick, No Tools Required |
| Highlight | Tool Free Peel Stick LED Film,Self Adhesive Transparent Screen Display,Quick DIY Glass Window Setup |
||
Product Description
P5 Tool Free Peel Stick Self Adhesive Transparent LED Film Display Screen for Glass Window Quick DIY Setup
The P5 Self-Adhesive Transparent LED Film Display revolutionizes digital signage installation. Designed with a true peel-and-stick backing, this ultra-thin LED film requires zero tools, zero brackets, and zero professional installation — simply peel off the protective liner and press directly onto any clean glass surface.
Key Features

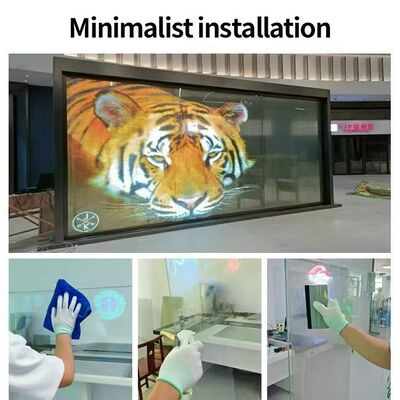

True Tool-Free Peel-and-Stick Installation
No drilling. No mounting frames. No technical expertise needed. The pre-applied adhesive backing allows one person to install an entire storefront display in under 30 minutes. This eliminates structural modification costs and landlord approval barriers common in retail leasing.
Ultra-Thin ≤3mm Profile
At just 3mm thick, the film virtually disappears against the glass when powered off. It preserves the natural aesthetics of your storefront while adding powerful digital advertising capability when active.
Up to 85% Transparency
High light transmission ensures your store interior remains visible and naturally lit. The see-through design complies with most commercial lease agreements that prohibit opaque window coverings.
P5 Pixel Pitch — Crisp Visuals
The 5mm pixel pitch delivers sharp, vibrant content suitable for product showcases, promotional videos, and brand storytelling at typical storefront viewing distances of 2-5 meters.
DC 5V Low-Voltage Safety
Powered by standard DC 5V, the film operates at touch-safe voltage levels. No high-voltage electrical work required — plug into any standard USB-PD or dedicated LED power supply.
Cuttable & Customizable
The film can be trimmed to fit any glass dimension. Whether you need a compact 0.5m² window sign or a full 10m² storefront video wall, the modular design adapts seamlessly.
Applications
- Retail Storefront Windows — Display promotions, new arrivals, and brand videos without blocking natural light
- Shopping Mall Glass Railings — Transform idle glass barriers into revenue-generating ad space
- Office Partitions — Company branding and visitor greetings on glass walls
- Showroom Displays — Product features overlaid directly on showroom glass
- Pop-Up Stores — Rapid deployment and removal for temporary retail activations
Technical Specifications
| Pixel Pitch | P5 (5mm) |
| LED Type | SMD 2121 |
| Transparency | Up to 85% |
| Brightness | ≥4000 cd/m² |
| Refresh Rate | ≥1920Hz |
| Input Voltage | DC 5V |
| Max Power Consumption | 400W/m² |
| Avg Power Consumption | 160W/m² |
| Thickness | ≤3mm |
| Weight | ≤3.5kg/m² |
| Viewing Angle | 160°/160° (H/V) |
| IP Rating | IP31 (Indoor) |
| Control System | Novastar / Linsn Compatible |
| Lifespan | ≥100,000 hours |
| Warranty | 3 Years |
| Installation | Peel and Stick, No Tools Required |
What's Included
- LED Transparent Film Display Panel (cut to order)
- LED Controller Card
- DC 5V Power Supply
- Data Cables & Connectors
- Installation Guide (English)
Custom sizes, pixel pitches (P4/P6/P8/P10), and brightness levels available upon request. Contact us for OEM/ODM inquiries.
