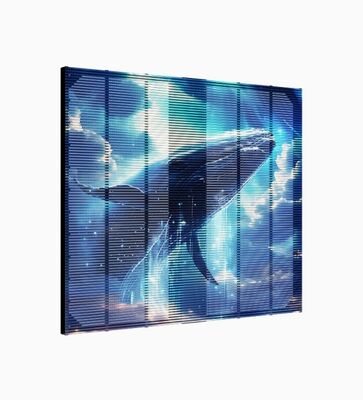

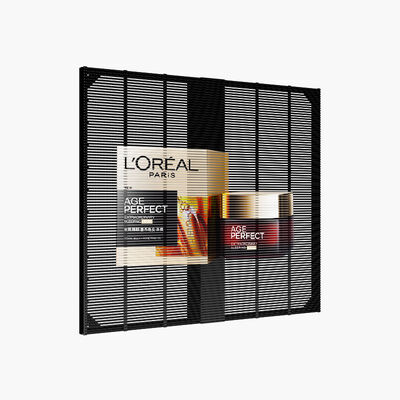

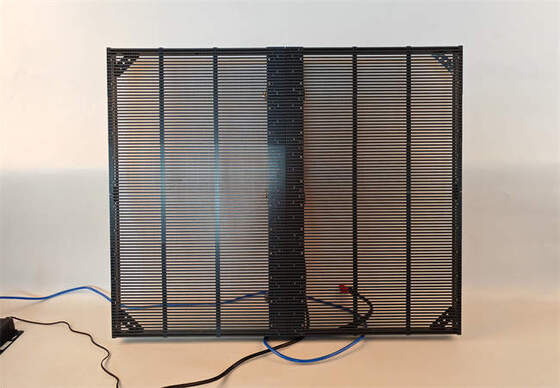

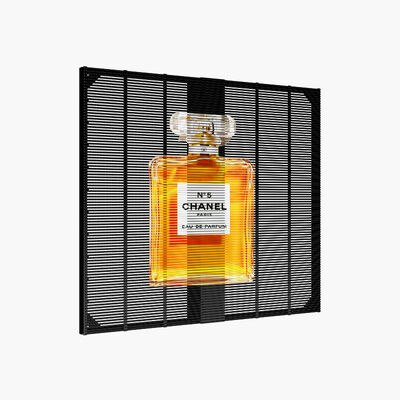

P50 IP68 Waterproof LED Mesh Curtain Display with Front Access Service and SMD3535 RGB LED for Outdoor Use
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS, FCC, |
| Model Number | XH-P50 |
| Minimum Order Quantity | 1 Square Meter |
| Price | USD 120-180 / Square Meter |
| Packaging Details | Export-grade flight case with foam protection, customized packaging available |
| Delivery Time | 3-5 working days for samples, 7-15 working days for bulk orders |
| Payment Terms | T/T,Western Union |
| Supply Ability | 8000 Square Meters per Month |
Product Details
| Pixel Pitch | P50 | LED Source | SMD3535 RGB |
|---|---|---|---|
| Brightness | 2500cd/m² | Control System | DMX512 / Art-Net Compatible |
| Protection Level | IP68 | Screen Weight | 3.5kg/m² |
| Working Voltage | DC12V | Max Power | 200W/m² |
| Average Power | 100W/m² | Viewing Angle | 180° |
| Refresh Rate | ≥1920Hz | Gray Scale | ≥14-bit |
| Permeability | ≥60% | Pixel Diameter | 25mm |
| Cabinet Material | PC + Silicone | Operating Temperature | -30°C To 65°C |
| Lifespan | ≥50,000 Hours | Warranty | 3 Years |
| Installation | Curved / Wall-mounted / Hanging | Service Mode | Front Access |
| Highlight | IP68 Fully Waterproof Mesh Display,Front Access Maintenance Design,Curved Flexible Curtain Installation |
||
Product Description
P50 IP68 Waterproof RGB LED Mesh Curtain Display Front Access Service SMD3535 Curved Flexible Outdoor Screen
Product Overview
The P50 IP68 Waterproof RGB LED Mesh Curtain Display combines full IP68 ingress protection with an innovative front access service design. Weighing only 3.5kg/m² with a high 60% permeability, this SMD3535 mesh curtain is engineered for permanent outdoor building facade lighting, architectural decoration, and large-scale media installations in harsh environments.
Key Features
- IP68 Fully Waterproof: Highest level of dust and water protection, suitable for permanent submersion and extreme weather conditions.
- Front Access Service Design: Enables quick on-site maintenance without removing the entire installation, reducing downtime and labor costs.
- Curved Flexible Installation: The ultra-lightweight mesh curtain conforms to curved, irregular, and complex architectural surfaces.
- 60% High Permeability: Superior wind and light transparency reduces structural wind load while maintaining building aesthetics.
- DMX512 & Art-Net Control: Compatible with professional lighting control protocols for seamless integration with stage, event, and architectural lighting systems.
- SMD3535 RGB LED Source: Delivers rich, vibrant colors with 180° wide beam angle for maximum visual impact.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | P50 |
| LED Source | SMD3535 RGB |
| Brightness | 2500cd/m² |
| Control System | DMX512 / Art-Net Compatible |
| Protection Level | IP68 |
| Screen Weight | 3.5kg/m² |
| Working Voltage | DC12V |
| Max Power | 200W/m² |
| Average Power | 100W/m² |
| Viewing Angle | 180° |
| Refresh Rate | ≥1920Hz |
| Gray Scale | ≥14-bit |
| Permeability | ≥60% |
| Pixel Diameter | 25mm |
| Cabinet Material | PC + Silicone |
| Operating Temperature | -20°C to 60°C |
| Lifespan | ≥50,000 hours |
| Warranty | 3 Years |
| Service Mode | Front Access |
Applications
- Permanent building facade lighting decoration
- Coastal and high-humidity outdoor installations
- Curved architectural media displays
- Stage and event backdrop lighting
- Bridge and landmark decorative illumination
- Theme park and resort ambient lighting
Why Choose Our LED Mesh Curtain Display?
- 20+ years of LED display R&D and manufacturing expertise
- CE, RoHS, FCC, ISO 9001:2015 certified production facility
- Comprehensive OEM & ODM customization capabilities
- 3-year warranty with lifetime technical support
- Rigorous multi-stage QC process ensures consistent product quality
- Competitive factory-direct pricing with fast global shipping
Frequently Asked Questions
Q: What does IP68 protection mean for this product?
A: IP68 certification means the mesh curtain is completely dust-tight and can withstand continuous immersion in water, making it suitable for coastal areas, rainy climates, and extreme outdoor environments.
Q: How does front access service work?
A: The front access design allows technicians to access and replace individual LED modules from the front side without dismantling the entire display structure, significantly reducing maintenance time and cost.
Q: Can this display be installed on a curved building surface?
A: Yes, the flexible mesh curtain design with 3.5kg/m² weight easily conforms to curved, cylindrical, and irregular architectural shapes.
