DC12V SMD3535 LED Mesh Screen 1000x1000mm IP67 LED Display Outdoor Building Video Wall
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS |
| Model Number | XH-G2001P31 |
| Minimum Order Quantity | 1 square meter sample, 50 square meters bulk |
| Price | Negotiation, factory direct tiered pricing for volume orders |
| Packaging Details | Carton 45x45x55cm with shock-proof foam insert, export grade packing, flight case optional |
| Delivery Time | 5 days for stock items, 15 working days for OEM and ODM orders |
| Payment Terms | T/T,Western Union |
| Supply Ability | 500 square meters per Month |
Product Details
| Working Voltage | DC12V | Input Voltage | AC110-240V |
|---|---|---|---|
| LED Source | SMD3535 RGB | Brightness | 10000cd/m2 |
| Max Power | 400W/m2 | Average Power | 200W/m2 |
| Refresh Rate | 1920Hz Or Higher | Grey Level | 4096 Levels |
| Permeation Ratio | 30% | Protection Level | IP67 |
| Cabinet Size | 1000mm X 1000mm | Cabinet Material | PC |
| Cabinet Weight | 8.5kg | Screen Weight | 8kg/m2 |
| Lighting Angle | 160 Degrees | Working Temperature | -20C To 65C |
| Lifespan | 50000 Hours | Warranty | 3 Years |
| OEM / ODM | Supported | Application | Outdoor Building Facade, Advertising Video Wall |
| Highlight | DC12V LED mesh screen,LED display outdoor building,OEM LED mesh screen bulk supply |
||
Product Description
DC12V LED Mesh Screen for Outdoor Building Facade LED Display Projects

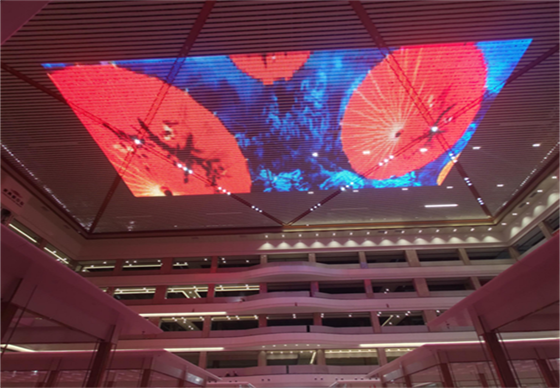

This DC12V LED mesh screen is engineered for outdoor building facade advertising, shopping mall curtain walls and event stage video walls. Each 1000mm x 1000mm PC cabinet is fully sealed to IP67 and accepts long-term outdoor exposure, while the 30% permeation ratio keeps wind load low and preserves the view and daylight behind the screen. A stable DC12V working voltage simplifies power distribution on large facades and lets controllers stay close to the cabinets.
12V LED Display Outdoor Building Specifications
| Attribute | Value |
|---|---|
| Brand Name | Miracle Bean |
| Model Number | XH-G2001P31 |
| Place of Origin | Guangdong, China |
| Certification | CE, RoHS |
| LED Source | SMD3535 RGB |
| Working Voltage | DC12V |
| Input Voltage | AC110-240V |
| Brightness | 10000cd/m2 |
| Max Power | 400W/m2 |
| Average Power | 200W/m2 |
| Refresh Rate | 1920Hz or higher |
| Grey Level | 4096 levels |
| Permeation Ratio | 30% |
| Protection Level | IP67 |
| Cabinet Size | 1000mm x 1000mm |
| Cabinet Material and Weight | PC, 8.5kg per cabinet |
| Screen Weight | 8kg/m2 |
| Lighting Angle | 160 degrees |
| Working Temperature | -20C to 65C |
| Lifespan | 50000 hours |
| Warranty | 3 years |
| OEM / ODM | Supported |
Why This LED Display Outdoor Building Solution
- DC12V low voltage operation - safer wiring and easier power cascading on tall building facades and rental frames.
- IP67 sealed PC cabinet - rain, dust and UV resistant, built for permanent outdoor installation.
- 10000cd/m2 brightness with 1920Hz refresh - readable in direct sunlight and flicker free on camera.
- 30% permeation ratio - lightweight 8kg/m2 structure lowering steel frame and wind load cost.
- Front and rear serviceable modules - single point maintenance without dismantling the whole screen.
- Free screen design service - layout, cabinet drawing and pixel mapping prepared for your project drawings.
Program for Volume Buyers and Project Contractors
- Factory direct pricing for bulk orders - tiered quotation for container loads and multi-project annual supply.
- Distributorship and territory protection - exclusive design lines and sales territory agreements for qualified partners.
- Production capacity of 500 square meters per month - steady scheduling for repeat facade projects.
- Dedicated project account manager - one English speaking contact from drawing confirmation to container loading.
- Spare parts and spare cabinet ratio - free spare modules and power supplies included in bulk orders.
- On-site support package - installation guide, controller configuration files and remote commissioning support.
Transaction Terms
| Item | Detail |
|---|---|
| Minimum Order Quantity | 1 square meter for sample, 50 square meters for bulk production |
| Price | Negotiation, factory direct tiered pricing for volume orders |
| Payment Terms | T/T, Western Union |
| Supply Ability | 500 square meters per month |
| Delivery Time | 5 days for stock items, 15 working days for OEM and ODM orders |
| Packaging Details | Carton 45x45x55cm with shock-proof foam, export grade packing, flight case optional |
Frequently Asked Questions
Does the screen really run on DC12V?
Yes. Each cabinet works on DC12V, the AC110-240V input is converted by the power supply unit. For large facades we supply the matched power distribution plan.
Can you supply a full building facade project?
Yes. Send the facade drawing and viewing distance, we return a cabinet layout, pixel mapping, quotation and installation sequence.
What is the warranty and after-sales policy?
3 years warranty with lifetime technical support. Defective units are replaced in subsequent orders, and remote commissioning support is free.
Can we sell under our own brand?
Yes. OEM and ODM are supported, including your logo on cabinets, custom packaging and your own controller configuration.
What certifications do you hold?
CE and RoHS. Additional certification for your market can be arranged for volume orders.
