LED Mesh Screen Wall Display Video Wall Transparent Curtain Billboard for Building Facade Stage Mall Advertising
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS |
| Model Number | XH-H2503P83-Max |
| Minimum Order Quantity | 1 Square Meter |
| Price | USD 320-680 / Square Meter |
| Packaging Details | Carton 45*45*55cm or customized flight case |
| Delivery Time | 5-15 working days |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 500+ Square Meters per Month |
Product Details
| Pixel Pitch | 83mm | LED Source | SMD3535 |
|---|---|---|---|
| Brightness | ≥2000Cd/m² | Refresh Rate | ≥3840Hz |
| Protection Level | IP67 | Viewing Angle | 160° |
| Permeation Ratio | 30% | Module Size | 1000mm × 1000mm (customizable) |
| Weight Per Sqm | 8Kg | Cabinet Material | PC |
| Working Voltage | DC12V | Input Voltage | AC110-240V |
| Max Power | 400W/m² | Average Power | 200W/m² |
| Control System | DMX512 | Lifespan | ≥100,000 Hours |
| Application | Video Wall, Building Facade, Stage Background, Mall Advertising | ||
| Highlight | LED Mesh Screen Video Wall,Outdoor Wall Display Curtain,Flexible Transparent LED Billboard |
||
Product Description
LED Mesh Screen Wall Display Video Wall Transparent Curtain Billboard for Building Facade Stage Mall Advertising
Product Overview
This flexible LED mesh screen is purpose-built for large-scale wall display and video wall projects. The transparent curtain structure delivers vivid imagery for building facade media, stage backdrops and shopping mall advertising, while its open mesh design cuts wind load and structural burden. An ideal B2B solution for buyers sourcing durable, high-brightness outdoor LED billboard systems worldwide.
Key Features
- Video Wall Ready: Seamless splicing for any-size LED video wall display, DMX512 control with ≥3840Hz refresh rate for flicker-free playback
- High Brightness: ≥2000Cd/m² output guarantees clear visibility under direct sunlight, perfect for outdoor wall display advertising
- IP67 Waterproof: Fully sealed LED modules resist rain, dust and extreme weather for permanent outdoor curtain billboard use

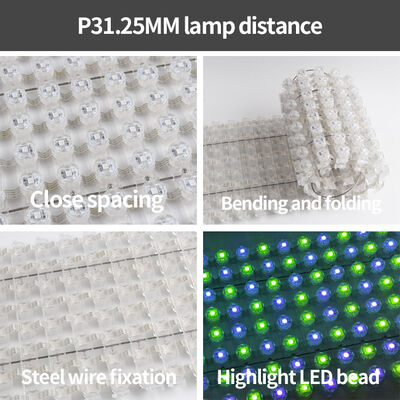

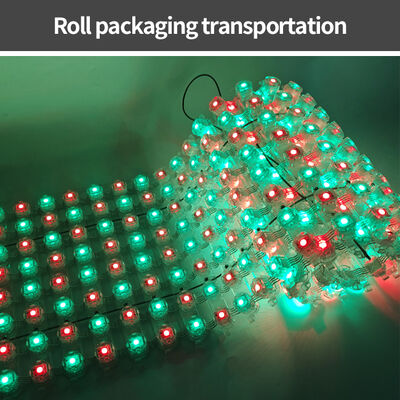

- Flexible & Lightweight: Soft mesh at only 8Kg/m² curves around building contours; PC cabinet with 4kg module for easy installation
- Transparent Design: 30% permeation ratio allows natural light and airflow, reducing wind load on facades while keeping architectural aesthetics
- Energy Efficient: Average consumption only 200W/m² with DC12V low-voltage operation for safe 24/7 running
Scenario Applications

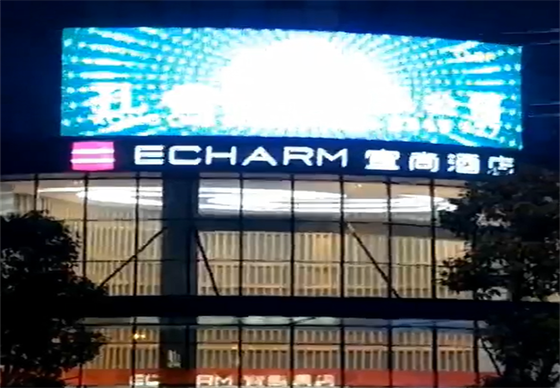

- Building Facade Advertising: Turn building exteriors into dynamic digital billboards for high-impact outdoor campaigns
- Stage & Event Background: Stunning visual backdrops for concerts, fashion shows and award ceremonies

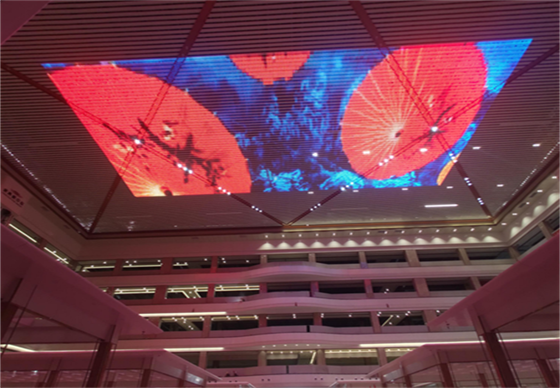

- Shopping Mall Media Wall: Immersive video wall displays for malls, airports and exhibition centers
- Commercial Billboard: Weather-resistant outdoor curtain billboard for 24/7 roadside and urban advertising
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand Name | Miracle Bean |
| Model Number | XH-H2503P83-Max |
| Pixel Pitch | 83mm |
| LED Source | SMD3535 |
| Brightness | ≥2000Cd/m² |
| Refresh Rate | ≥3840Hz |
| Protection Level | IP67 |
| Viewing Angle | 160° |
| Permeation Ratio | 30% |
| Module Size | 1000mm × 1000mm |
| Weight per sqm | 8Kg |
| Cabinet Material | PC |
| Input Voltage | AC110-240V |
| Max Power | 400W/m² |
| Average Power | 200W/m² |
| Lifespan | ≥100,000 hours |
| Control System | DMX512 |
| Warranty | 3 Years |
B2B Advantages
- 20+ years specialized in LED mesh screens, transparent screens and grille screens
- Comprehensive OEM & ODM services with free design support for custom video wall projects
- Small MOQ of 1 sqm to test market response before bulk ordering
- Factory-direct pricing with no middleman markup
- Fast delivery: samples immediately after payment; bulk orders within 7-15 working days
- 3-year warranty with lifetime technical support and defective product replacement
Frequently Asked Questions
Q: Can this LED mesh screen be used for video wall display?
Yes. With ≥3840Hz refresh rate and DMX512 control, it delivers smooth, flicker-free video playback for broadcast and live event environments.
Q: What sizes are available for the wall display?
Each module is 1000mm * 1000mm and can be daisy-chained to build video walls of any size. Custom dimensions are available on request.
Q: Is it suitable for permanent outdoor building facade use?
Absolutely. IP67 waterproof rating, 2000nit brightness and 30% permeation make it ideal for permanent outdoor building facade installations.
Q: What is the minimum order quantity?
MOQ is just 1 square meter, ideal for sample testing and project evaluation.
