P31.25 5000nits Ultra Bright LED Mesh Screen with DMX512/SPI Dual Control and Lightweight 5kg/m² Design
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS, FCC |
| Model Number | XH-P31.25 |
| Minimum Order Quantity | 1 Square Meter |
| Price | USD 180-250 / Square Meter |
| Packaging Details | Export-grade plywood flight case with foam protection, customized packaging available |
| Delivery Time | 3-5 working days for samples, 10-20 working days for bulk orders |
| Payment Terms | T/T,Western Union |
| Supply Ability | 5000 Square Meters per Month |
Product Details
| Pixel Pitch | P31.25 | LED Source | SMD3535 RGB |
|---|---|---|---|
| Brightness | 5000cd/m² | Control System | DMX512 / SPI Dual Mode |
| Protection Level | IP67 | Screen Weight | 5kg/m² |
| Working Voltage | DC12V | Max Power | 350W/m² |
| Average Power | 175W/m² | Viewing Angle | 160° Horizontal / 160° Vertical |
| Refresh Rate | ≥1920Hz | Gray Scale | ≥14-bit |
| Permeability | ≥45% | Cabinet Material | PC + Aluminum Alloy |
| Operating Temperature | -20°C To 60°C | Lifespan | ≥50,000 Hours |
| Warranty | 3 Years | Installation | Wall-mounted / Hanging / Curved |
| Highlight | 5000nits Ultra Bright LED Display,DMX512 SPI Dual Control System,5kg/m² Lightweight Mesh Screen |
||
Product Description
P31.25 5000nits RGB LED Mesh Screen DMX512 SPI Dual Control Lightweight 5kg/m² Outdoor Flexible Display
Product Overview
The P31.25 RGB LED Mesh Screen delivers exceptional 5000nits brightness with a lightweight 5kg/m² design, making it ideal for large-scale outdoor building facade displays and advertising applications. Featuring dual DMX512 and SPI control modes, this flexible mesh display offers versatile installation options for creative architectural lighting projects.
Key Features
- Ultra-High Brightness 5000nits: Ensures clear visibility even under direct sunlight for outdoor applications.
- DMX512 & SPI Dual Control: Supports industry-standard DMX512 protocol and SPI mode for seamless integration with existing lighting control systems.
- Lightweight 5kg/m² Design: Significantly reduces structural load on building facades and simplifies installation logistics.
- IP67 Protection: Fully sealed against dust and water immersion, suitable for all-weather outdoor deployment.
- High Permeability ≥45%: Allows wind and light to pass through, reducing wind load and preserving building aesthetics.
- Flexible Installation: Supports wall-mounted, hanging, and curved configurations for creative architectural designs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | P31.25 |
| LED Source | SMD3535 RGB |
| Brightness | 5000cd/m² |
| Control System | DMX512 / SPI Dual Mode |
| Protection Level | IP67 |
| Screen Weight | 5kg/m² |
| Working Voltage | DC12V |
| Max Power | 350W/m² |
| Average Power | 175W/m² |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Refresh Rate | ≥1920Hz |
| Gray Scale | ≥14-bit |
| Permeability | ≥45% |
| Cabinet Material | PC + Aluminum Alloy |
| Operating Temperature | -20°C to 60°C |
| Lifespan | ≥50,000 hours |
| Warranty | 3 Years |
Applications

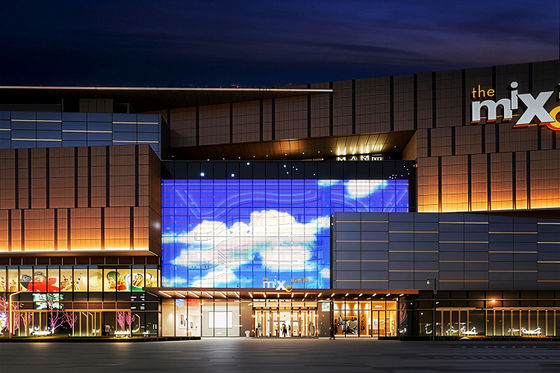

- Building facade media displays
- Shopping mall outdoor advertising
- Stage performance backdrop
- Large-scale outdoor events
- Commercial plaza digital signage
Why Choose Our LED Mesh Screen?
- 20+ years of LED display manufacturing experience
- CE, RoHS, ISO 9001:2015 certified factory
- OEM & ODM customization services available
- 3-year comprehensive warranty with lifetime technical support
- Professional QC team ensures quality at every production stage
- Fast delivery: samples ship within 3-5 days
Frequently Asked Questions
Q: What control protocols are supported?
A: This model supports both DMX512 and SPI control modes for maximum compatibility.
Q: Can the screen be installed on curved surfaces?
A: Yes, the lightweight and flexible design allows installation on curved and irregular building surfaces.
Q: What is the minimum order quantity?
A: Minimum order is 1 square meter. We accommodate both small trial orders and large-scale projects.
Product Gallery
Certifications
Company Profile
Shenzhen Xinhe Optoelectronic Lighting Co., Ltd. was established in 2004 and has been professionally operating for 20 years. The company specializes in providing independent intellectual property rights for point light sources as the core, along with supporting and serving other lighting fixtures. We offer comprehensive services including scheme design, product research and development, engineering budgeting, project construction, and on-site guidance for architectural landscape and advertising lighting projects.
Based in Shenzhen Special Economic Zone, China, with global business coverage, we innovate to improve quality, build our brand with integrity, and earn respect through exceptional service. The company consistently adheres to the corporate philosophy of quality first and service first to create value for customers. With advanced enterprise management and efficient employee teams, we cooperate sincerely with our customers to achieve win-win situations for society, customers, and ourselves, jointly creating the future of LED lighting applications.
