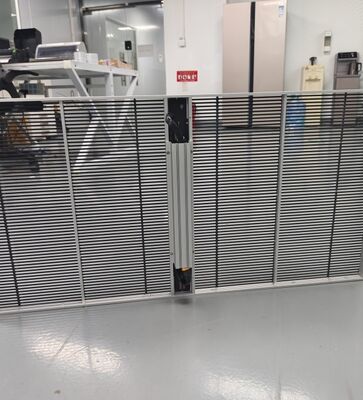

P31.25 5000nits RGB LED Mesh Screen with DMX512 SPI Dual Control and Lightweight 5kg/m² Design for Outdoor Use
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE, RoHS, FCC |
| Model Number | XH-P31.25 |
| Minimum Order Quantity | 1 Square Meter |
| Price | USD 180-250 / Square Meter |
| Packaging Details | Export-grade plywood flight case with foam protection, customized packaging available |
| Delivery Time | 3-5 working days for samples, 10-20 working days for bulk orders |
| Payment Terms | T/T,Western Union |
| Supply Ability | 5000 Square Meters per Month |
Product Details
| Pixel Pitch | P31.25 | LED Source | SMD3535 RGB |
|---|---|---|---|
| Brightness | 5000cd/m² | Control System | DMX512 / SPI Dual Mode |
| Protection Level | IP67 | Screen Weight | 5kg/m² |
| Working Voltage | DC12V | Max Power | 350W/m² |
| Average Power | 175W/m² | Viewing Angle | 160° Horizontal / 160° Vertical |
| Refresh Rate | ≥1920Hz | Gray Scale | ≥14-bit |
| Permeability | ≥45% | Cabinet Material | PC + Aluminum Alloy |
| Operating Temperature | -20°C To 60°C | Lifespan | ≥50,000 Hours |
| Warranty | 3 Years | Installation | Wall-mounted / Hanging / Curved |
| Highlight | 5000nits Ultra Bright LED Display,DMX512 SPI Dual Control System,5kg/m² Lightweight Mesh Screen |
||
Product Description
P31.25 5000nits RGB LED Mesh Screen DMX512 SPI Dual Control Lightweight 5kg/m² Outdoor Flexible Display
Product Overview
The P31.25 RGB LED Mesh Screen delivers exceptional 5000nits brightness with a lightweight 5kg/m² design, making it ideal for large-scale outdoor building facade displays and advertising applications. Featuring dual DMX512 and SPI control modes, this flexible mesh display offers versatile installation options for creative architectural lighting projects.
Key Features
- Ultra-High Brightness 5000nits: Ensures clear visibility even under direct sunlight for outdoor applications.
- DMX512 & SPI Dual Control: Supports industry-standard DMX512 protocol and SPI mode for seamless integration with existing lighting control systems.
- Lightweight 5kg/m² Design: Significantly reduces structural load on building facades and simplifies installation logistics.
- IP67 Protection: Fully sealed against dust and water immersion, suitable for all-weather outdoor deployment.
- High Permeability ≥45%: Allows wind and light to pass through, reducing wind load and preserving building aesthetics.
- Flexible Installation: Supports wall-mounted, hanging, and curved configurations for creative architectural designs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | P31.25 |
| LED Source | SMD3535 RGB |
| Brightness | 5000cd/m² |
| Control System | DMX512 / SPI Dual Mode |
| Protection Level | IP67 |
| Screen Weight | 5kg/m² |
| Working Voltage | DC12V |
| Max Power | 350W/m² |
| Average Power | 175W/m² |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Refresh Rate | ≥1920Hz |
| Gray Scale | ≥14-bit |
| Permeability | ≥45% |
| Cabinet Material | PC + Aluminum Alloy |
| Operating Temperature | -20°C to 60°C |
| Lifespan | ≥50,000 hours |
| Warranty | 3 Years |
Applications
- Building facade media displays
- Shopping mall outdoor advertising
- Stage performance backdrop
- Large-scale outdoor events
- Commercial plaza digital signage
Why Choose Our LED Mesh Screen?
- 20+ years of LED display manufacturing experience
- CE, RoHS, ISO 9001:2015 certified factory
- OEM & ODM customization services available
- 3-year comprehensive warranty with lifetime technical support
- Professional QC team ensures quality at every production stage
- Fast delivery: samples ship within 3-5 days
FAQ
Q: What control protocols are supported?
A: This model supports both DMX512 and SPI control modes for maximum compatibility.
Q: Can the screen be installed on curved surfaces?
A: Yes, the lightweight and flexible design allows installation on curved and irregular building surfaces.
Q: What is the minimum order quantity?
A: Minimum order is 1 square meter. We accommodate both small trial orders and large-scale projects.

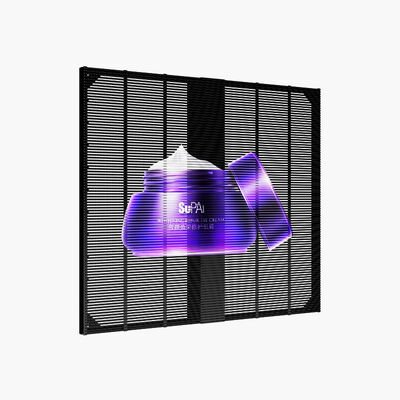

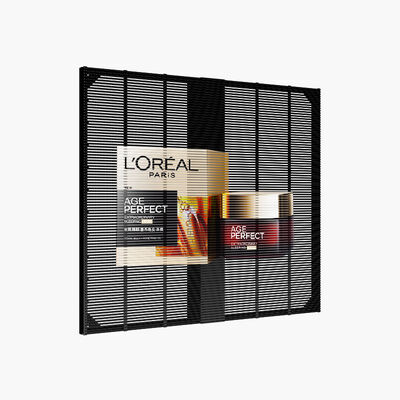

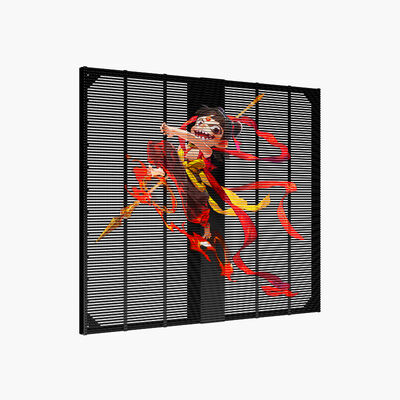

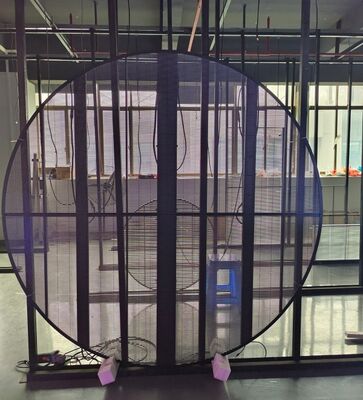

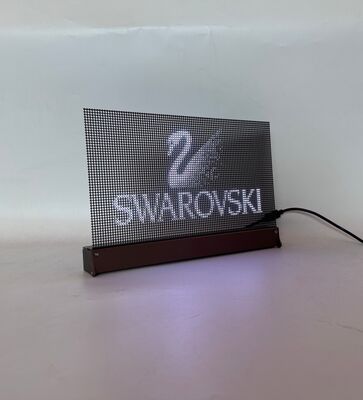

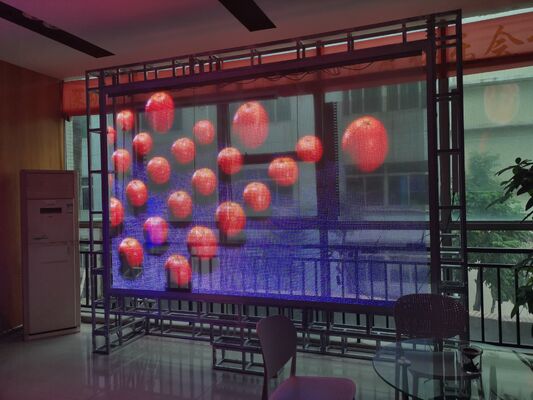

Product Gallery
