Building Facade Lighting P125 DC12V RGB Led Mesh Screen Outdoor DMX512 Flexible Led Curtain for Building
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC | Product Name | LED Mesh Screen |
|---|---|---|---|
| Name | XH-H2503P12(RGB)-P125 | Protection Level | IP67 |
| Screen Dimension | 1000*1000mm | Life Span | 30000h |
| Operating Temperature | -20 ~+60℃ | Tube Chip Color | RGB |
| LED Chip | SMD3535 | Weight | 1.8 Kg |
| Usage | Outdoor Adverting Display | Installation | Bolt Splicing,Wire Flixatio |
| Certification | CE，RoHS，EMC | Warranty | 3 Years |
| Highlight | DMX512 RGB LED mesh screen,flexible LED curtain facade lighting,outdoor building LED mesh screen |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Building Facade Lighting P125 DC12V RGB Led Mesh Screen Outdoor DMX512 Flexible Led Curtain for Building
Technical Specifications
| Attribute | Value |
|---|---|
| Material | PC |
| Model Name | XH-H2503P12(RGB)-P125 |
| Protection Level | IP67 |
| Screen Dimension | 1000×1000mm |
| Life Span | 30,000 hours |
| Operating Temperature | -20°C to +60°C |
| LED Chip | SMD3535 |
| Weight | 1.8kg |
| Certification | CE, RoHS, EMC |
| Warranty | 3 Years |
| Controller | DMX512 |
| Voltage | DC12V |
| Power | 48W/m² |
| Color | RGB |
Technical Advantages
- High Brightness: SMD5050 LEDs with 160° light angle for excellent visibility
- Flexible Installation: Adaptable to curves and irregular surfaces
- Durability: Weather-resistant IP67 rating with flame retardant grade V-0
- Energy Efficient: Low power consumption at 48W/m²
- Long Lifespan: 30,000 hours operational life in outdoor conditions
Key Features
- Transparent, modular, lightweight design with self-cooling capability
- IP67 protection rating for outdoor durability
- Exclusive patent with multiple density options
- Clasp splicing and wire fixation for easy installation
- Roll and bag transportation for convenience
- Ideal for solid walls, steel structures, and glass curtain walls
- Perfect for cultural tourism promotion, commercial advertising, and city branding
Company Advantages
- 20+ years of industry experience
- Established relationships with 100+ international clients
- Flexible minimum order quantities
- 3-year warranty with prompt replacement service
- Direct technical support and problem resolution
Customer Services
- 24-hour response time
- OEM & ODM services available
- Distributorship opportunities
- Sales area protection and confidentiality
- Fast delivery: 7 working days standard, 15 days custom projects
- Lifelong warranty support
Frequently Asked Questions
1. Why choose us?
We have 21 years of experience designing and producing LED products worldwide. We offer custom solutions with free design, supported by our own factory and R&D team to meet diverse customer needs.
2. How long is the warranty period?
3 Years
3. How long is the delivery time?
Samples: shipped immediately after payment. Bulk orders: within 7 working days. OEM/ODM orders: within 15 working days.
4. How do you control product quality?
Our professional QC team performs quality checks at every production stage.

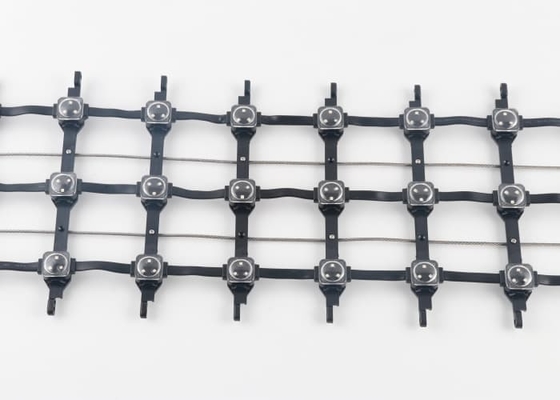

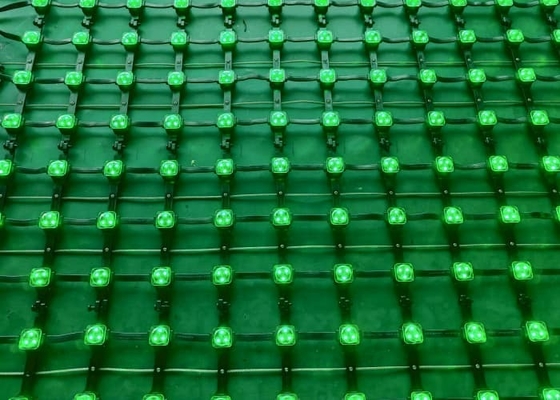

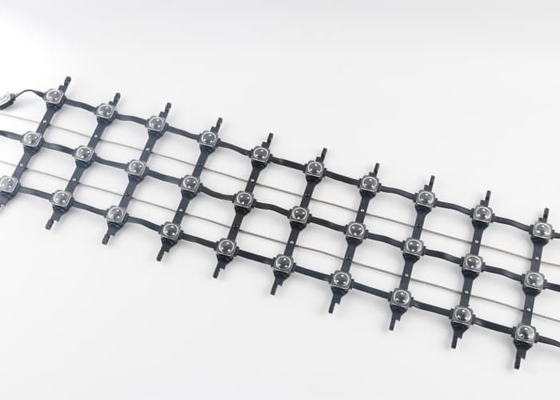

Product Images
